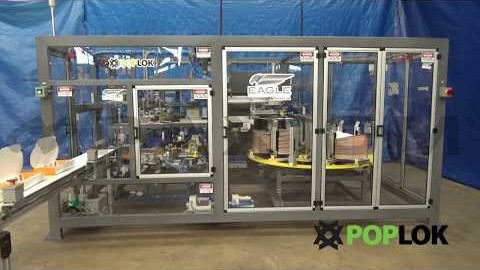

POPLOK INSERTER

Carton Tray Forming

Engineered for the most complex carton forming applications, the PopLok® tray former with display inserter is commonly used in the pharmaceutical, medical device, beauty, health and consumer electronics industries.

How fold and tuck carton forming works:

The machine pulls a tray blank, one at a time, from the hopper, and pulls it through forming plows and erecting the side and end panels of the tray while folding in the minor flaps. When the tray reaches the bottom of the vertical travel, a set of pneumatically controlled bars fold and lock the rollover flap in place. The finished tray is then indexed in position to load the insert. The insert blank is picked from the hopper, folded and formed before the plunger pushes it down and places it into the formed tray.

Videos

Features:

  • 1, 2, 3, 4 tuck or multi ‘”fold & tuck” models available
  • Form large or small trays with or without a lid
  • Eliminate repetitive motion issues and insurance claims
  • Easy load hopper for tray blanks
  • Heavy duty, welded steel frame
  • Interlocked safety gates or doors
  • Auto-idler
  • Venturi vacuum technology used in tray erection
  • Omron PLC
  • Color touch screen allowing adjustment & full access to all functions & timing of machine
  • Tray ejection system
  • Central valve exhaust for noise reduction and clean air
  • STEEL-IT paint with all moving parts painted bright yellow
  • On-line detailed operation manual accessible through HMI
Specifications

Features:

  • 1, 2, 3, 4 tuck or multi ‘”fold & tuck” models available
  • Form large or small trays with or without a lid
  • Eliminate repetitive motion issues and insurance claims
  • Easy load hopper for tray blanks
  • Heavy duty, welded steel frame
  • Interlocked safety gates or doors
  • Auto-idler
  • Venturi vacuum technology used in tray erection
  • Omron PLC
  • Color touch screen allowing adjustment & full access to all functions & timing of machine
  • Tray ejection system
  • Central valve exhaust for noise reduction and clean air
  • STEEL-IT paint with all moving parts painted bright yellow
  • On-line detailed operation manual accessible through HMI
